오늘 소개할 제품은 전기차 배터리 충방전에 필수적인 양방향 전원공급기로 유명한 ITECH 제품을 소개해 드리려고합니다. AC 파워소스는 전기자동차, 배터리, 에너지저장시스템 등 최근 전력전자 산업분야에 없어서는 안될 중요한 제품입니다. ITECH IT6018B-2250-25 Reg. DC Power Supply 간단히 소개해드리며, 판매,렌탈,대여 가능합니다.
목차
1. IT6000B Regenerative Power System
2. Product Features
3. 제품 상세설명 및 사진
4. 마무리
ITECH IT6018B-2250-25 양방향 파워 서플라이
Regenerative DC Power Supply / 재생 전원 공급기 무엇입니까?
재생 전원 공급기는 에너지를 그리드로 안전하게 반환하므로 과도한 열을 제거하는데 드는 추가 비용이 발생하지 않습니다. 기기당 최대 2000V, 최대 ±800A, 최대 30 kW.
IT6000B Regenerative Power System
IT6000B Regenerative Power System
From the perspective of improving customer experience, ITECH launches a new incorporated product -- IT6000B series. Adopting advance SiC technology, IT6000B integrates bidirectional power supply and regenerative electronic load into one 3U unit. It can be used not only as a stand-alone powerful bidirectional power supply, as a source to provide power; but also as an independent regenerative electronic load, to absorb the consumed energy and feedback cleanly to the grid.
T6000B offers standard two-quadrants functionality. IT6000B provides 7 voltage specification, up to 2250V, supports master-slave parallel with even current distribution up to 2 MW. Built-in waveform generator supports generating arbitrary waveforms, and imports LIST files for waveforms via USB interface. IT6000B is a familty of bi-directional, regenerative power system with excellent performance, extensively used in aspects of high power battery, automotive electronics, green energy, high speed testing etc.
Product Features
Product Features
- 2 in 1 device integrating bidirectional DC power supply and electronic load supported by advanced third-generation SiC technology
- Seamless current switch between souring and sinking
- Stand-alone power up to 144kW, expandable in parallel up to 2 MW
- Voltage output ratings: 0-2250V
- Current output ratings: 0 to 2040A (single cabinet), 0 to 8000A (parallel connection between cabinets)
- High power density design provides 18 kW in 3U space
- Support CC/CV loop speed and priority setting
- Partial pre-compliant with LV123, LV148, DIN40839, ISO-16750-2, SAEJ1113-11, LV124 and ISO21848 automotive testing stanards
- High efficiency energy recovery
- Battery cycle test - support CC/CV/CP
Parallel Technology
- All the function and performance will be the same as standalone unit
- No need to calibrate after paralleling
- Fiber transmission, good for anti-interference
- Digital paralleling, fully insulatedm good for protecting DUT
Functions & Advantages
- One Button Switch between source & sink
- Bi-directional energy, seamless switching
- High Energy regenerative efficiency
- Application for Solar Array Simulation
- Built-in voltage curves for a variety of standard automotive voltage curves
- CC & CV Priority
Products/Models
Options & Accessoriesc

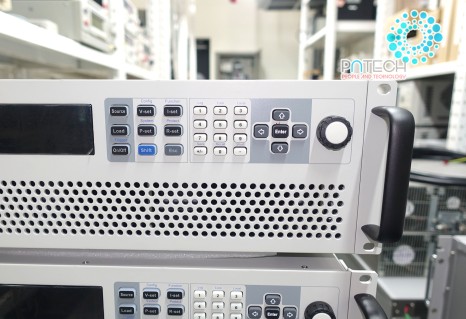

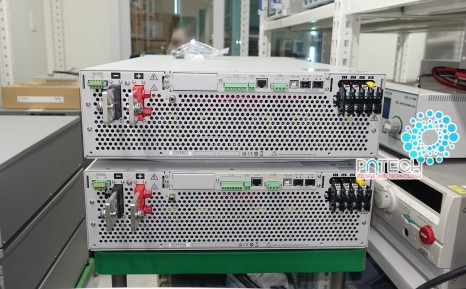

제품 상세설명 및 사진
마무리
이외에도 저희 피엔텍에서는 다양한 사양의 계측장비를 보유하고있습니다.
제품구매 / 렌탈 / 대여 / 수리 등 기타 궁금한점이나 문의사항 있으시면 언제든지 연락주세요. 계측기 전문 상담사가 친절하게 안내해드리겠습니다.
문의 : 010-2331-0295 / ☎ 02-407-5295
이메일 : dhjang02@gmail.com
계측기렌탈 / 계측기수리 / 계측기판매 / 중고계측기 / 오실로스코프 수리 / 오실로스코프 대여 / 계측기수리판매
