[중고계측기] 르크로이 LeCroy HVD3106 High Voltage Differential Probe 디피렌셜 프로브

MyGodisGreater 2023. 2. 14. 14:58

중고계측기 렌탈 판매 대여 르크로이 LeCroy HVD3106 High Voltage Differential Probe 디퍼런셜 프로브 입고

안녕하세요~ 주말 잘 보냈나요?

어제부터 날씨가 쌀쌀하네요~

오늘은 오실로스코프 디퍼런셜 프로브 소개하려고요~


HVD3106 Diff. Probe

Key Features:

  • 1 kV safety rated models
  • Widest differential voltage ranges available
  • Exceptional common-mode rejection ratio (CMRR) accross a broad frequency range
  • 1% gain accuracy
  • High offset capability at both high and low attenuation
  • AC and DC coupling
  • ProBus active probe interface with automatic scaling
  • AutoZero with auto disconnect switch
  • Wide oscilloscope compatibility


Exceptional Common-Mode Rejection Ratio

The CMRR for the probes is exceptional out to very high frequencies, greatly improving measurement capability in the noisy, high common-mode environment found in power electronics. The high CMRR combined with low probe noise and high offset capability superior measurement capabilities compared to other HV differential probes.

High Precision Measurements

HVD3000A series probes provide 1% gain accuracy enabling precise voltage measurements. AutoZero capability ensures further measurement precision by allowing small offset drifts to be calibrated out of the measurement. This feature can be applied without removing the HVD3000A leads from the device under test.

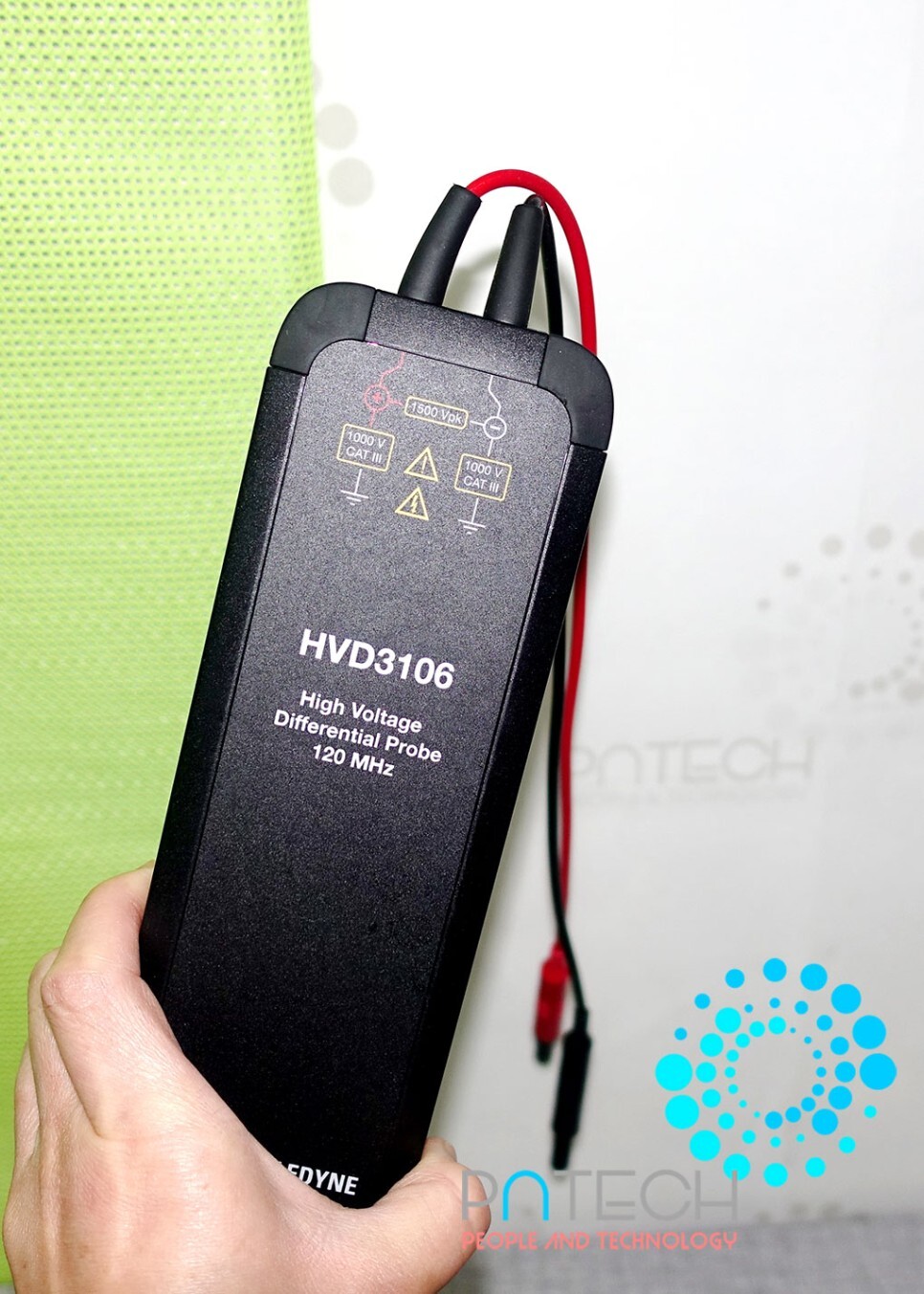

중고계측기판매 렌탈 대여 HVD3106 High Voltage Differential Probe 120 MHz - 디퍼런셜 프로브

Widest Application Coverage

The HVD3000A series cover the fullest range of applications, from 120/240 switch mode power supplies through 600 V class and 5 kV class electrical apparatus. Each model has the best available gain accuracy, widest differential and offset voltage range, and superior CMRR.

Complete Probe Integration

The ProBus interface provides power and communication to the probe eliminating the need for a seperate power supply or batteries. Attenuation is automatically selected based on oscilloscope gain range (V/div ) setting.

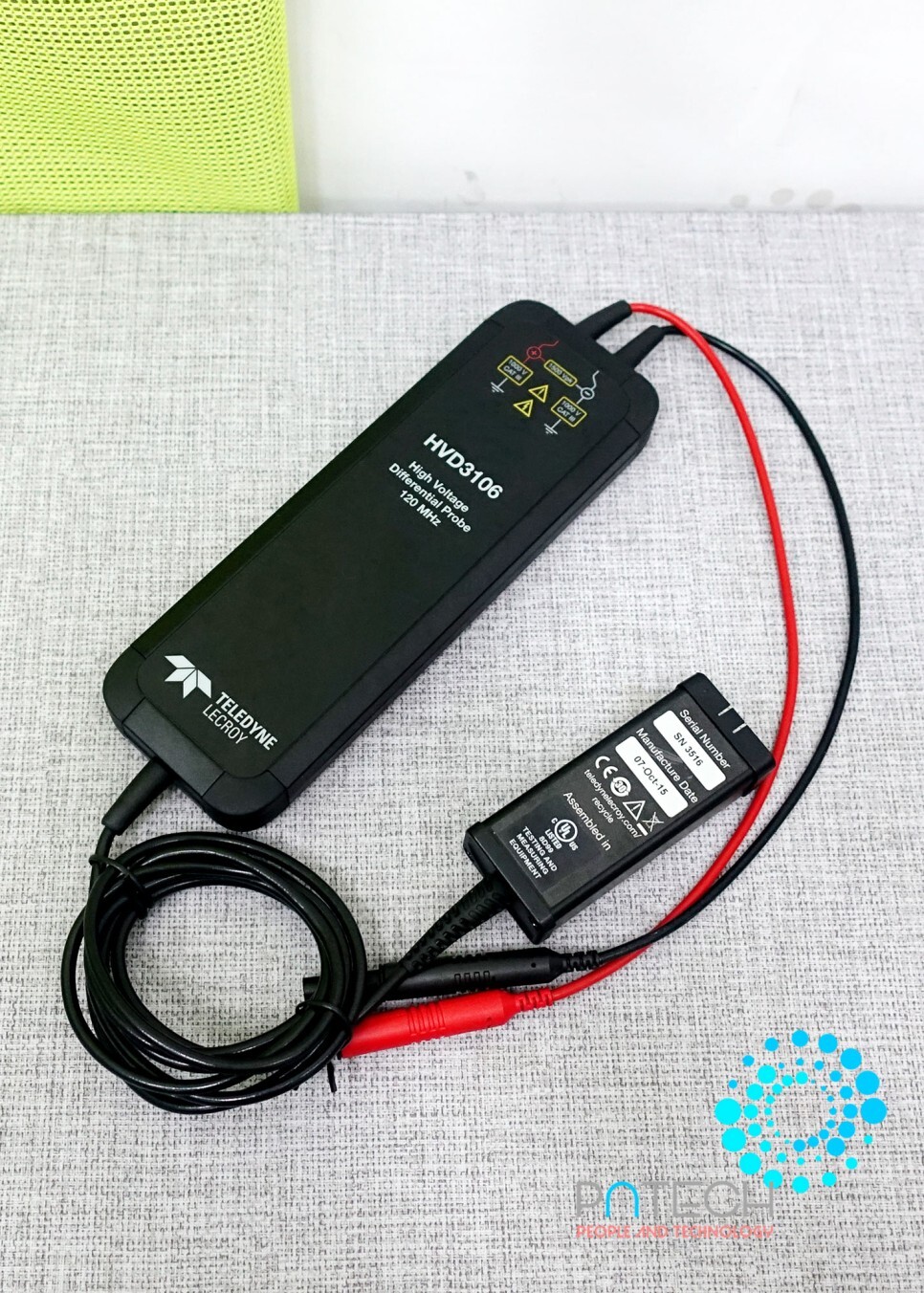

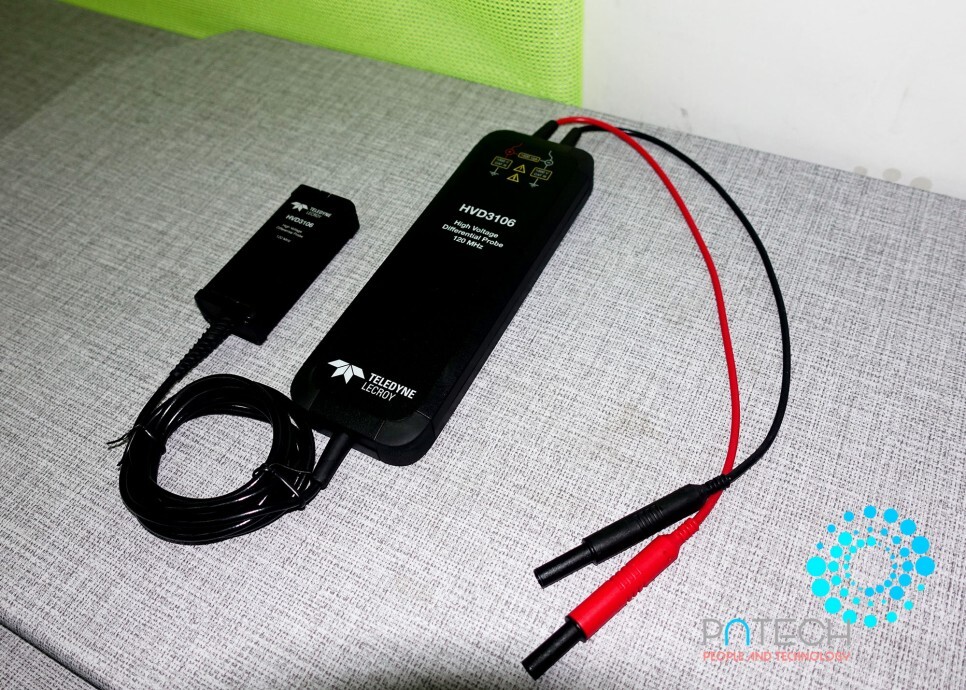

중고 계측기 프로브 르크로이 LeCroy HVD3106 Diffferential Probe / 디퍼런셜 프로브

중고계측기 렌탈 판매 대여 판매 르크로이 프로브 HVD3106 에대한 자세한 내용은 아래로 연락 주시기 바랍니다~

감사합니다~
