[중고계측기] 중고계측기판매 대여 렌탈 Hioki 8826 Memory HiCorder / 메모리 하이코더 입고 소식~

MyGodisGreater 2023. 2. 15. 15:53

중고 계측기 판매 대여 렌탈 장비 히오키 / Hioki 8826 Memory HiCorder / 메모리 하이코더 입고되었습니다~

불금이네요~ 오늘도 휴가 떠난 분들 많겠어요~

잘들 다녀오시고 다음 주에 일을 더 열심히 하자고요~

오늘도 늦게 글 올립니다~ 죄송해요~ 늘 바빠서~

오늘의 장비는 히오키 Hioki 8826 Memory HiCorder이고요~

  •
중고계측기렌탈 판매 대여 히오키 Hioki 8826 메모리하이코더 / Memory HiCorder 입고되였습니다~

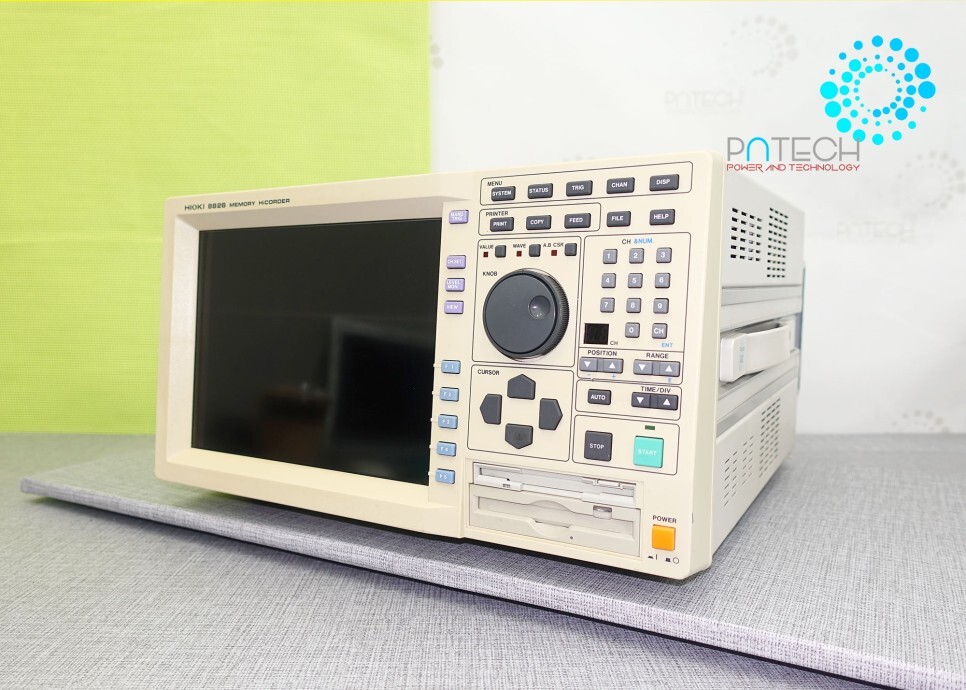

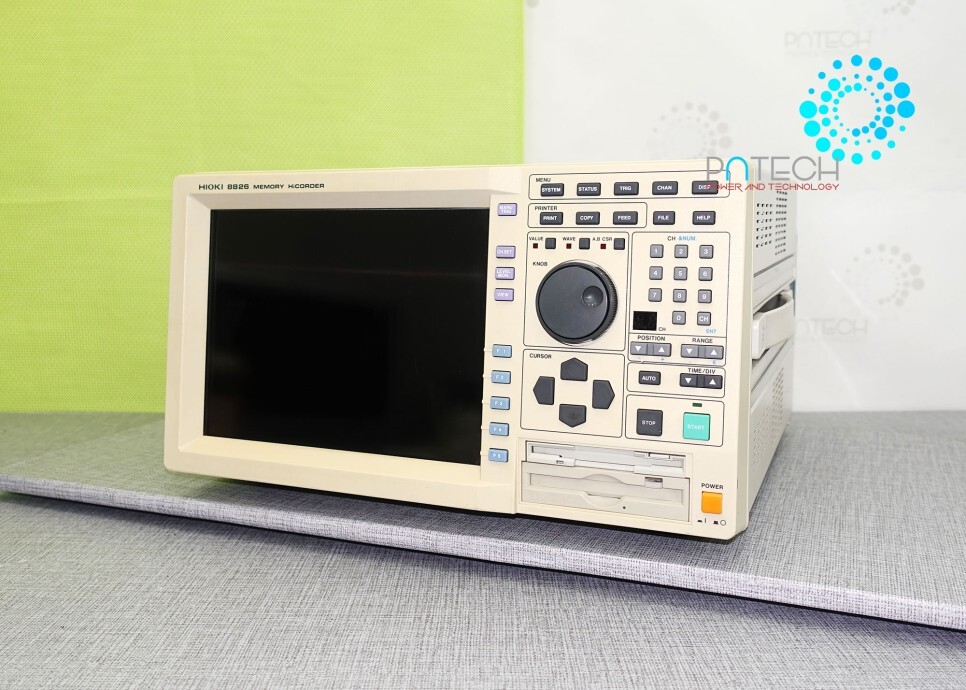

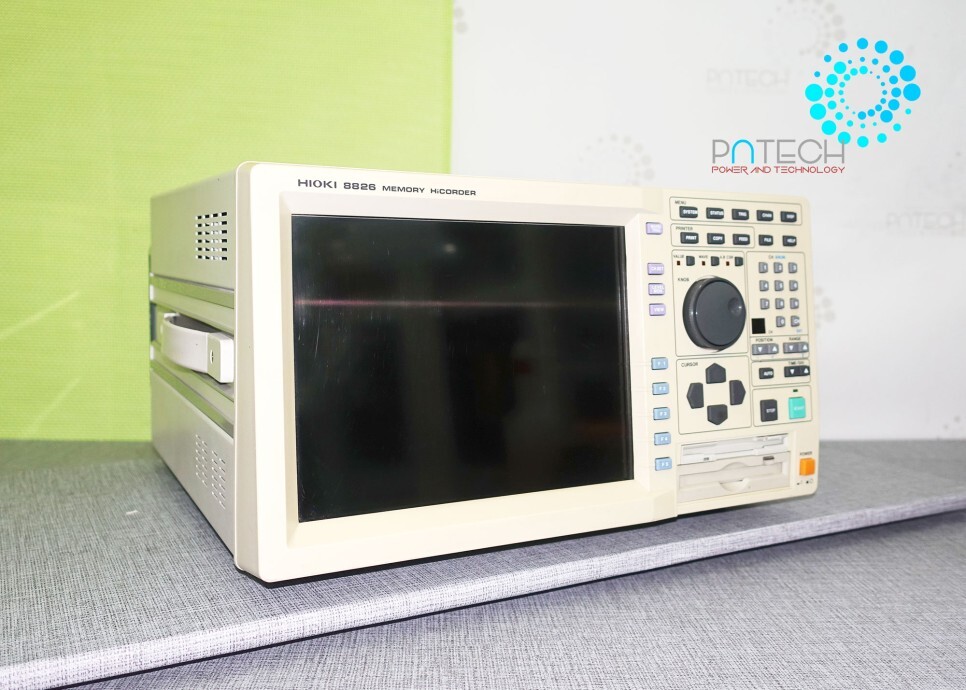

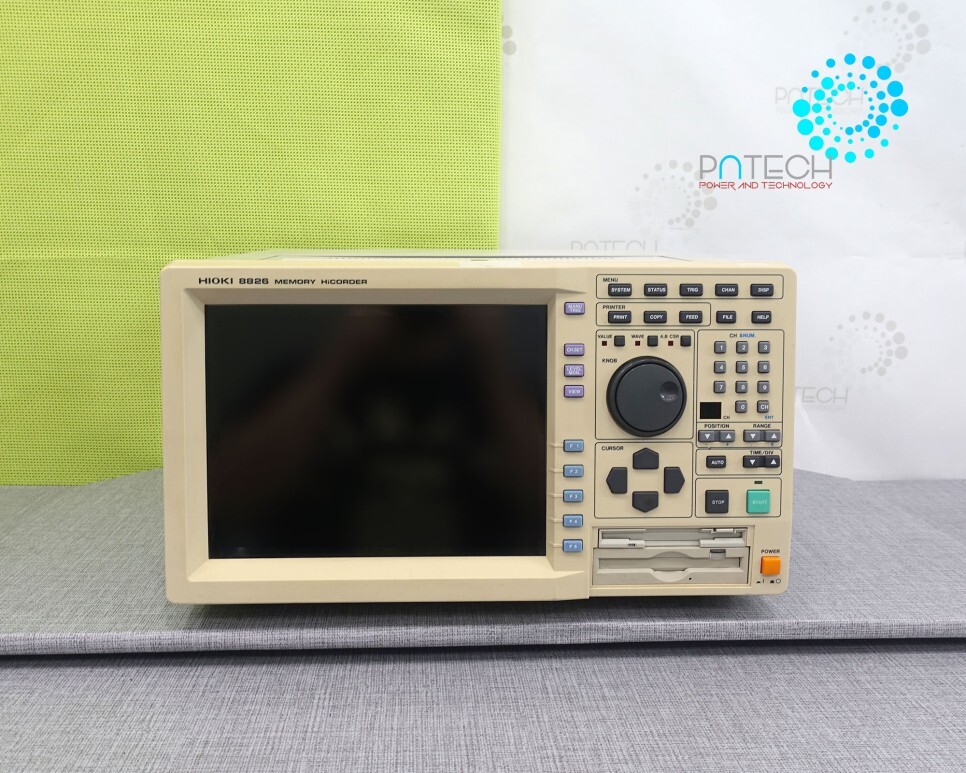

HIOKI 8826 High Speed Memory HICorder

히오키/Hioki 8826 메모리 하이코더

32- Channel Recorder with large display and wide printer installed

  • 10.4 inch color TFT display

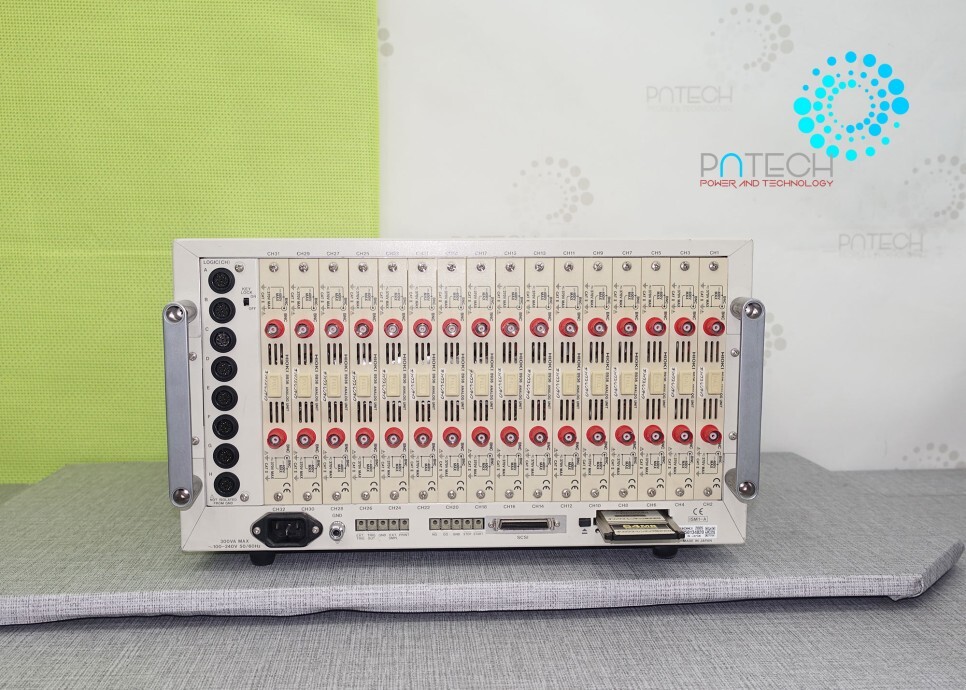

  • Simultaneous measurement in up to 32 channels
  • Built-in PC Card slot
  • Large capacity memory

Description:

The 8826 Memory HiCorder can now be connected to a LAN, and when used with a PC makes the ideal recorder for today's Internet-based environment. For use with the 8826, Hioki provides a wide assortment of input suitable for all types of signal measurment. The 8826 has a high waveform sampling sate of 1M sample/s which is carried out for all 32 channels simultaneously. In addition, the 8826 supports multichannel recording with wide 10.4 inch recording paper, a memory capacity of 64 mega-word for all 32 channels (when expansion memory is installed), and a color LCD>




중고계측기렌탈 판매 대여 수리 히오키 Hioki 8826 Memory HiCorder/메모리 하이코더 매각 교정 도 가능합니다


The internal MO (magneto-optical) disk drive can store up to 640 megabytes on a single disk. A floffy disk drive and type IIPC card slot are provided as standard equipment. This makes it easy to archive measurement data. Besides its internal binary file format, the 8826 can also store data as ASCII files and display screen shots as BMP files.

In the standard configuration, the 8826 can store a total of 16 mega-words, and with memory expansion 64 mega-words, suing internal solid-state memory. This provides ample capacity to store data for all 32 channels.




중고 계측기 판매 렌탈 대여 수리 HIOKI/ 히오키 8826 메모리 하이코더 / 32-Ch Memory HiCorder

Manufacturer Specs: Hioki 8826

Measurement Ranges:
5 mV to 20 V/div., 12 range (normal f.s; 20 div., wide f.s.; 24 div.), resolution: 1/80 of range AC voltage for possible measurmeent/display using the memory function : 334 V rms
Frequency Characteristic:
DC to 400 kHz, 3 dB (used 8936 Analog Unit/Option)
Time Axis:
100's to 5 min./div., 20 settings (1 div=100 samples), external sampling (500 kS/s, min. sampling period 2's)
Measurement Functions:
(1) Memory recorder,(2) Recorder, (3) RMS recorder (50/60 Hz or DC only), (4) Recorder and Memory, (5) Real-time save, (6) FFT
Other Functions:
Scaling, Waveform Judgement, Waveform Processing calculations, Waveform parameter calculations, Memory segmentation, Logging print, Clock, Cursor readout, Comment entry, etc.
Dimension & Weight:
L x W x H: 401 mm x 382 mm x 235mm ; 11 kg.



중고계측기판매 수리 매입 렌탈 히오키 Hioki / 히오키 8826 메모리 하이코더 32채널 ; Memory HiCorder

다양한 중고 계측기를 판매 렌탈 대여 공급합니다.

본 제품은 재고 있으며, 작동되는 거 확인하였습니다.

필요하시거나 히오키 Hioki 8826에 대해 궁금하시면~ 아래로 연락하시면 될 것 같습니다~

중고 계측기 판매 렌탈 대여 전문 업체 피엔텍입니다.
