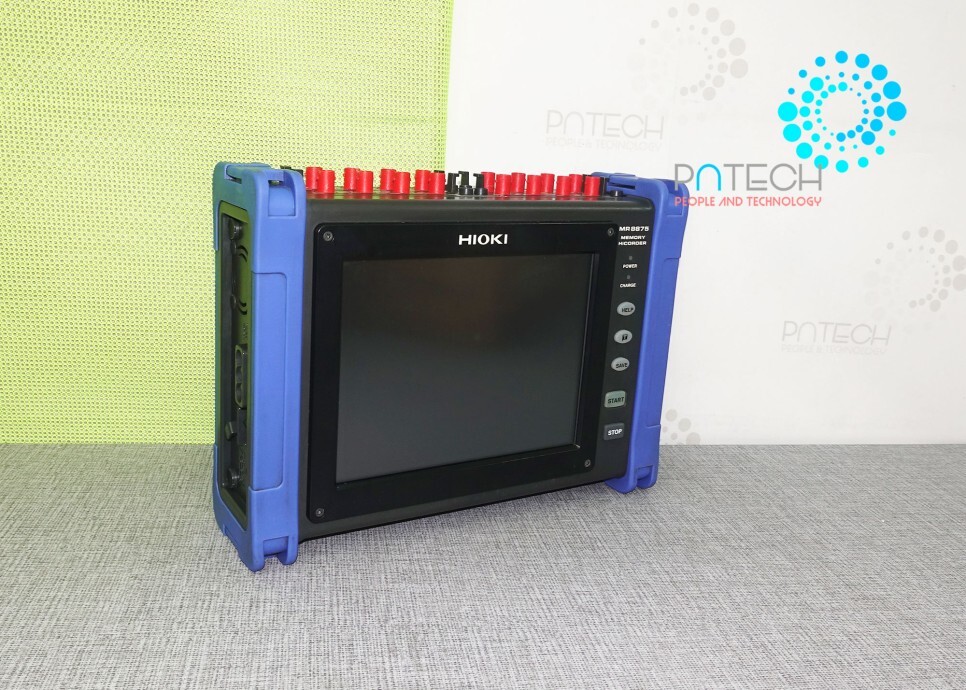

Hioki MR8875 메모리하이코더 입니다~
Key Features
Hioki MR8875 Memory HiCorder
- Up to 4 slots, user installable input cards in any combination by plugging into the main unit
- 1000V input and instrument DC or RMS waveform measurement with new Analog Unit MR8905
- Measure multiple channels simultaneously despite handheld portable design
- Save directly to the SD card in real time for uninterrupted long-term logging
히오키 MR8875 메모리하이코더
- 16-bit high resolution measurement of voltage, temperature, distortioin and CAN signals
- FFT calculation, waveform calculation functions for avanced analysis
- Intuitive touch screen for optimal operability
- Tough against vibrations and extreme temperatures, with strengthened body ideal for in-vehicle testing and road tests.
- 3 different power supplies
Description
Hioki MR8875 Memory HiCorder (Max 16-60 Channels, 32MW)
Hioki Memory HiCorder are high-speed waveform monitoring and recording devices that can simultaneously measure multiple physical phenomena such as voltage, current, temperature, vibration, weight, acceleration and rotation due to comlpete isolation between channels and from each channel to the ground. The MR8875 data acquisition (DAQ) recorder accomodates plug-and-play input modules to meet applications such as onboard vehicle analysis, current consumption testing of portable devices, and measuring the voltage waveforms of superconducting materials and contacts.
중고 계측기 판매 대여 매각 히오키 Hioki MR8875 Memory HiCorder / 메모리하이코더
Synchronized mixed recording of CAN data and real data such as voltage, temperature or distortion signals
CAN bus signals that are used widely, particularly in automotive applications can be recorded, analyzed, converted to analog wavforms, and viewed. Simultaneously recording and viewing of analog waveforms from sensors, in addition to the CAN data allows for checking the impact of noise and level changes on the communication data.
Manufacturer Specs
|
No. of channels
|
16
|
|
Measurement Ranges
|
5 mV, 10 mV, 20 mV, 50 mV, 100 mV, 200 mV, 500mV, 1 V, 2 V, 5 V, 10 V/div
|
|
Maximum Input Voltage
|
150 V DC
|
|
Frequency Characteristics
|
DC to 100 kHz, -3 dB
|
|
Time axis
|
200 ㎲, 500 ㎲, 1ms, 2ms, 5 ms, 10 ms, 20 ms, 50 ms, 100 ms, 200 ms, 500 ms, 1 s, 2 s, 5 s, 10 s, 30 s, 50 s, 60 s, 100 s, 2.5 min/div
External sampling
|
|
Memory Capacity
|
Total 32 MW (8MW/unit)
|
|
Display
|
8.4-inch SVGA TFT color LCD with touch panel
|

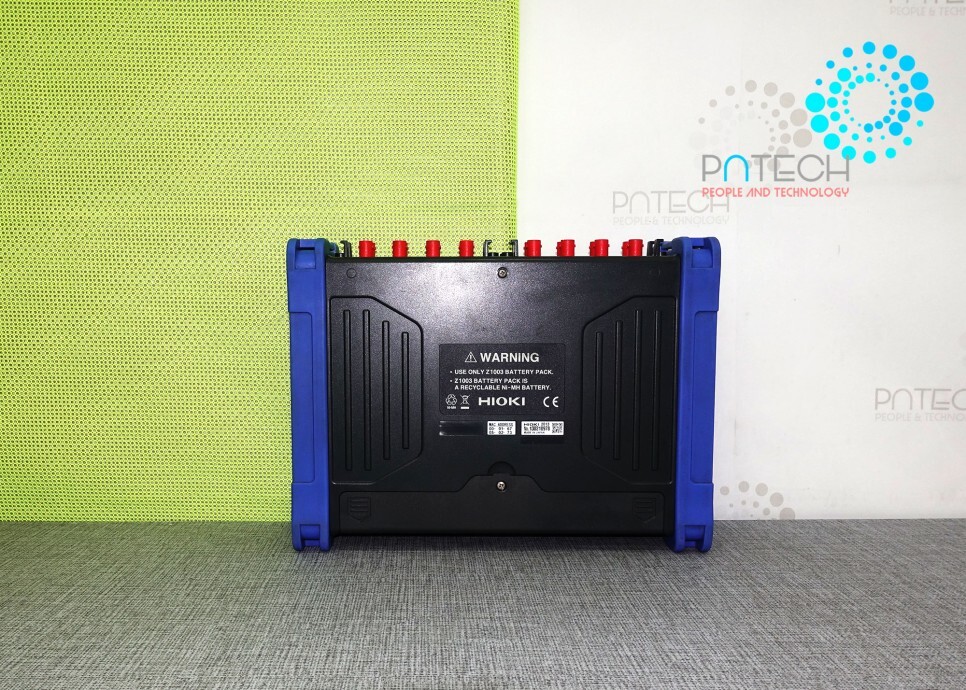

중고 계측기 판매 렌탈 대여 매각 히오키 / Hioki MR8875 Memory HiCorder
Vector's CAN database can be loaded using supplied software
Industry standard CANdb databse files can be loaded into the supplied setting software and ssociated to the CAN channels signals. CAN messages can be viewed using the customer-specified message and signal names, as well as scaled engineering units. Since parameters such as signal data type, start bit, length, and byte sequence are all pre-defined CANdb, users can concentrate on their measurement tasks without needing to define signals.
중고계측기 렌탈 판매 대여 수리 히오키 Hioki MR8875 메모리하이코더 / Memory HiCorder
본 장비는 "A"급이며 작동 잘됩니다~
Hioki MR8875 Memory HiCorder 메모리 하이 코더에 대해 더 알고 싶으시면 아래로 연락 주세요~
