중고계측기 대여 매각 수리 크로마 CHROMA 61512 Programmable AC Source 18 KVA (1/3 PHASE) 프러그래머블 AC 소스 계측기 렌털
안녕하세요
요즘 날씨가 많이 주우졌지요~ 이럴 땐 다 뜻한 바다 가고프네요~

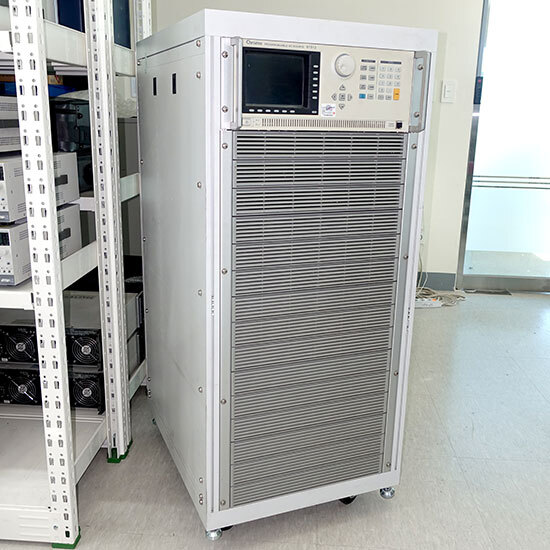

CHROMA 61512 Programmable AC Source
소개하러 왔어요~
중고계측기 판매 대여 수리 크롬마/ Chroma 61512 Programmable AC Source / 플로그래머블 AC 소스

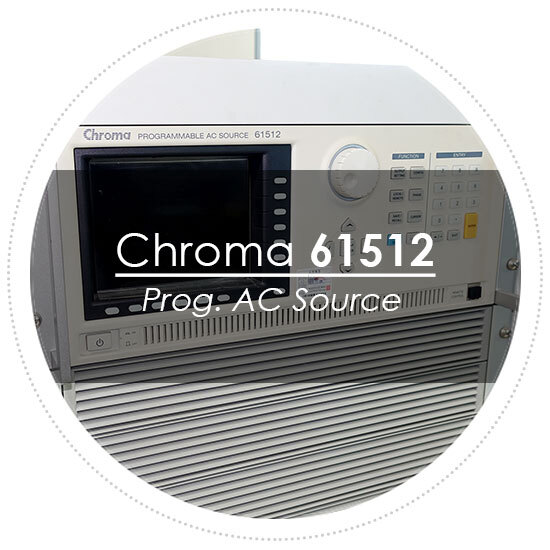

크로마 CHROMA 61512 Programmable AC Source
Features:
-
- Power Rating : 61511/61611 : 12KVA ; 61512/61612 : 18KVA
- Voltage Range: 0-150V/0-300V/Auto
- Frequency: DC, 15Hz-1500Hz
- Single-Phase or Three-Phase Output Selectable
- Programmable Slew Rate Setting for Changing Voltage and Frequency
- Programmable Voltage and Current Limit
- High Output Current Crest Factor, Ideal for Inrush Current Testing
- Turn on, Turn off Phase Angle Control
- TTL Signal Which Indicates Output Transient
- LIST, PULSE, STEP Mode Functions for Testing Power Line Disturbance (PLD) Simulation

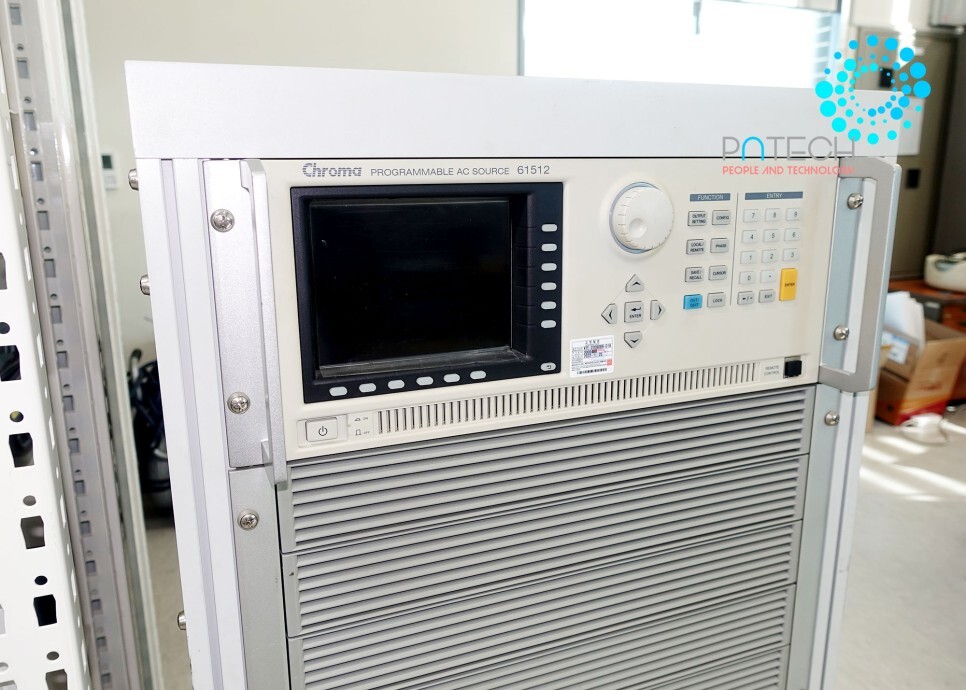

중고계측기 대여 수리 매각 크로마 Chroma 61512 Programmable AC Source / 프로그래머블 AC 소스
ADVANCED PWM TECHNOLOGY
Chroma 61500/61600 series AC power source are able to provide highest power density by its advanced high speed PWM mode design. The modularized power stage design offer outstanding performance and high reliability. The modularized design allows service personnel to identify the trouble spot more efficiently and minimize the downtime. With no transformer at the output stage, it not only reduces the output impedance, but also lets 61500/61600 series be able to program DC component for simulating AC voltage with DC offset condition. This function allows user to simulate the test condition of unbalanced input current for rectified load.
중고계측기 대여 수리 매각 크로마 Chroma 61512 Programmable AC Source / 프로그래머블 AC 소스

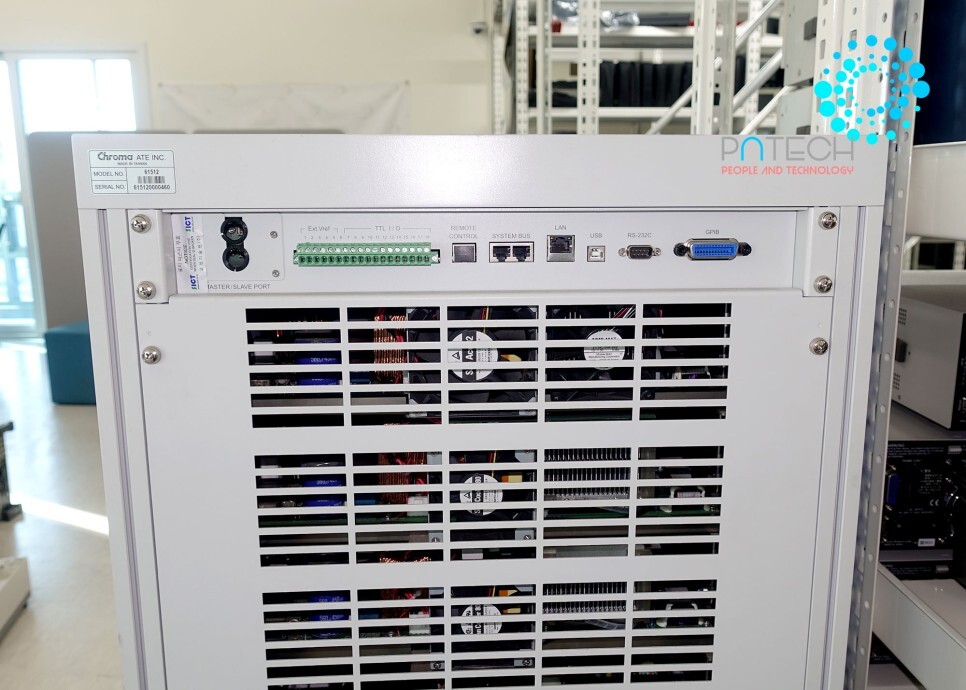

AC SOURCE (MASTER-SLAVE) PARALLEL OPERATION
The 61511/61512/61611/61612 AC source models provide the (Master-Slave) parallel operation function, which enable users to extend the AC source power output ability by connecting AC sources in parallel. The maximum allowable number of AC source implemented for the parallel operation is 5 units. Therefore, users can achieve a maximum power output up to 90KVA by combining 5 units of assorted AC source of 18KVA in (Master-Slave) parallel operation mode. The user could also use A615103 Power Stage as an alternative cost effective solution for the parallel operation, by implementing it as slave unit. Please refer to the following figures for AC source models 61511/61512/61611/61612 setup for parallel operation configuration.

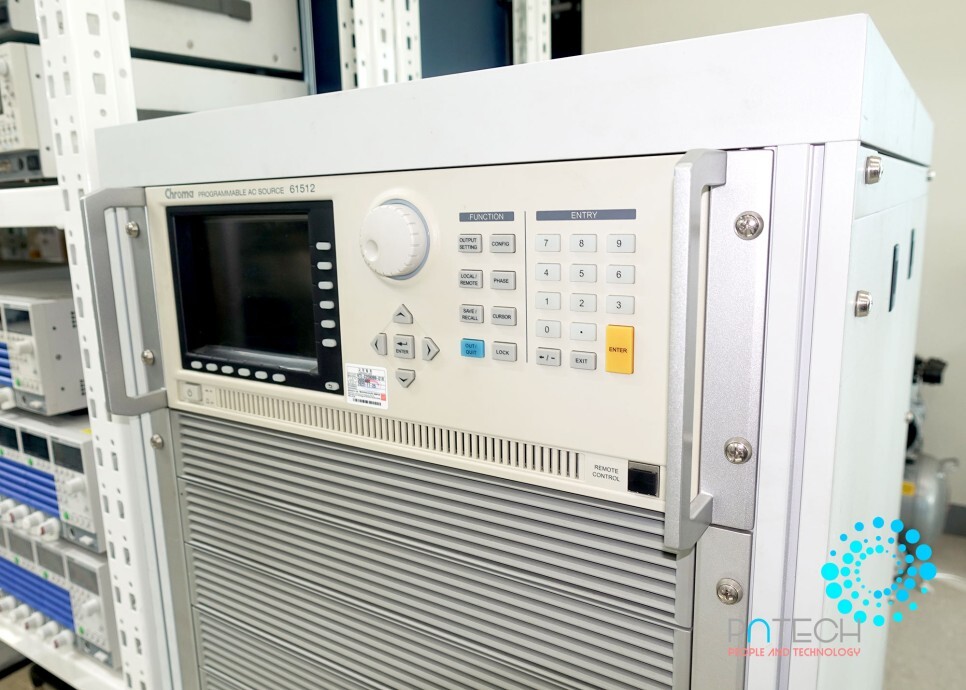

중고계측기 대여 수리 매각 크로마 Chroma 61512 Programmable AC Source / 프로그래머블 AC 소스
THE 61500/61600 SERIES SOFTPANEL
Chroma Softpanel is a graphical user interface which provides extraordinary capability and convenience to user for delivering control to the unit. The 61500/61600 series Softpanel is designed specifically for offering users to control the AC source by applying user friendly interface configured in a graphical, instrument like settings. The self explanatory graphical interface makes the enabling of extensive functions of AC source with just few clicks of button. Users are able to perform online and offline waveform editing with the implementation of Softpanel. The Softpanel is also equipped with data recording function as multiple measurement data can be recorded simultaneously. One of the most powerful features for Softpanel is the availability of test environment configured specifically for conducting IEC regulation test, such as IEC 61000-4-11(Pre-complience), IEC61000-4-13, IEC61000-4-14 and IEC61000-4-28.
중고계측기 대여 수리 매각 크로마 Chroma 61512 Programmable AC Source / 프로그래머블 AC 소스
다양한 중고 계측기 판매 렌탈 대여합니다.
필요하신 분들은 아래로 연락 주시기 바랍니다~
