오늘 소개해드릴 장비는 GWINSTEK PSW-80-13.5 MULTI RANGE POWER SUPPLY / 80V 13.5A 360W, 1채널 스위칭 DC전원공급기입니다. 전압 : 80V, 전류 : 13.5A, 전력 : 360W이며, 자세한 스펙은 하단에서 확인해주세요. 이 장비 연구 또는 업무에 필요하시다면 언제든지 연락주시면 친절하게 안내해드리겠습니다.
목차
1. Features
2. 중제목2
3. 중제목3
4. 마무리
80V 13.5A 360W, 1채널 스위칭 DC전원공급기
GWINSTEK PSW-80-13.5 MULTI RANGE POWER SUPPLY Features
- Voltage Rating: 30V / 40V / 80V / 160V / 250V / 800V, Output Power Rating: 360W ~ 1080W
- Multi-range Voltage & Current Combinations in One Power Supply
- CV/CC Priority; Particularly Suitable for the Battery and LED industry
- Adjustable Slew Rate
- Series Operation (2 untis in Series) for (30V/ 40V/ 80V/ 160V)
- Parallel Operation (to units Parallel) for (30V / 40V/ 80V/ 160V/ 250V/ 800V)
- High Efficiency and High Power Density
- 1/2, 1/3, 1/6 Rack Mount Size Design (EIA/JIS Standard) for 360W, 720W, 1080W
- Standard Interface: GPIB - USB Adaptor, RS232-USB Cable
- LabView Driver
The PSW Series is a single-output multi-range programmable switching DC Power Supply covering a power range up to 1080W. This series of products include eighteen models with the combination of 30V, 40V, 80V< 160V, 800V rated voltages and 360W, 720W and 1080W maximum output powers. The multi-range features allows the flexible and effecient configutation of voltage and current within the rated power range.
PSW 시리즈는 최대 2개 장치를 직렬로 연결하거나 최대 3개 장치를 병렬로 연결할수 있으므로 더 늪은 전압 또는 더 늪은 전류 출력을 위해 여러 PSW 장치를 연결할 수 있어 광범위한 적용 범위를 제공합니다. 다중 범위 전력 연결의 유연성을 통해 PSW 시르즈는 다양한 전력 요구 사항이 있는 프로젝트를 수용할 수 있도록 다양한 전원 공급 장치 제품에 대한 사용자의 투자를 크게 중립니다.
DC 전원공급기 Description
The PSW-Series is a single-output multi-range programmable switching DC Power Supply covering a power range up to 1080W. This series of products include eighteen models with the combination of 30V, 40V, 80V, 160V, 250V, and 800V rated voltages and 360W, 720W and 1080W maximum output powers. The multi-range feature allows the flexible and efficient configuration of voltage and current within the rated power range.
As the PSW-Series can be connected in series for maximum 2 units or in parallel for maximum 3 units, the capability of connecting multiple PSW units for higher voltage or higher current output provides a broad coverage of applications. With the flexibility of multi-range power utilization and series/parallel connection, the PSW Series significantly reduces the user’s investment for various power supply products to accommodate the projects with different power requirements.
The CV/CC priority selection of the PSW-Series is a very useful feature for DUT protection. The conventional power supply normally operates under CV mode when the power output is turned on. This could bring a high inrush current to the capacitive load or current-intensive load at the power output-on stage. Taking the I-V curve verification of LED as an example, it becomes a very challenging task to perform this measurement using a conventional power supply. With LED connected to a power supply under CV mode as the initial setting, when the power output is turned on and the voltage rises to the LED forward voltage, the current will suddenly peak up and exceed the preset value of current limit. Upon detecting this high current, the power supply starts the transition from CV mode to CC mode.
Though the current becomes stable after the CC mode is activated, the current spike occurred at the CV and CC crossover point may possibly damage the DUT. At the power output-on stage, the PSW-Series is able to run under CC priority to limit the current spike occurred at the threshold voltage and therefore protect DUT from the inrush current damage.
PSW-Series Multi-Range DC Power Supply
PARALLEL OPERATION ( 3 UNITS ) | SERIES OPERATION ( 2 UNITS ) | ||||||
MODEL | SINGLE UNIT | 2 UNITS | 3 UNITS | MODEL | SINGLE UNIT | 2 UNITS | |
PSW 30-36 | 30V/36A | 30V/72A | 30V/108A | PSW 30-36 | 30V/36A | 60V/36A | |
PSW 30-72 | 30V/72A | 30V/144A | 30V/216A | PSW 30-72 | 30V/72A | 60V/72A | |
PSW 30-108 | 30V/108A | 30V/216A | 30V/324A | PSW 30-108 | 30V/108A | 60V/108A | |
PSW 40-27 | 40V/27A | 40V/54A | 40V/81A | PSW 40-27 | 40V/27A | 80V/27A | |
PSW 40-54 | 40V/54A | 40V/108A | 40V/162A | PSW 40-54 | 40V/54A | 80V/54A | |
PSW 40-81 | 40V/81A | 40V/162A | 40V/243A | PSW 40-81 | 40V/81A | 80V/81A | |
PSW 80-13.5 | 80V/13.5A | 80V/27A | 80V/40.5A | PSW 80-13.5 | 80V/13.5A | 160V/13.5A | |
PSW 80-27 | 80V/27A | 80V/54A | 80V/81A | PSW 80-27 | 80V/27A | 160V/27A | |
PSW 80-40.5 | 80V/40.5A | 80V/81A | 80V/121.5A | PSW 80-40.5 | 80V/40.5A | 160V/40.5A | |
PSW 160-7.2 | 160V/7.2A | 160V/14.4A | 160V/21.6A | PSW 160-7.2 | 160V/7.2A | 320V/7.2A | |
PSW 160-14.4 | 160V/14.4A | 160V/28.8A | 160V/43.2A | PSW 160-14.4 | 160V/14.4A | 320V/14.4A | |
PSW 160-21.6 | 160V/21.6A | 160V/43.2A | 160V/64.8A | PSW 160-21.6 | 160V/21.6A | 320V/21.6A | |
PSW 250-4.5 | 250V/4.5A | 250V/9A | 250V/13.5A | PSW 250-4.5 | N/A | N/A | |
PSW 250-9 | 250V/9A | 250V/18A | 250V/27A | PSW 250-9 | N/A | N/A | |
PSW 250-13.5 | 250V/13.5A | 250V/27A | 250V/40.5A | PSW 250-13.5 | N/A | N/A | |
PSW 800-1.44 | 800V/1.44A | 800V/2.88A | 800V/4.32A | PSW 800-1.44 | N/A | N/A | |
PSW 800-2.88 | 800V/2.88A | 800V/5.76A | 800V/8.64A | PSW 800-2.88 | N/A | N/A | |
PSW 800-4.32 | 800V/4.32A | 800V/8.64A | 800V/12.96A | PSW 800-4.32 | N/A | N/A |

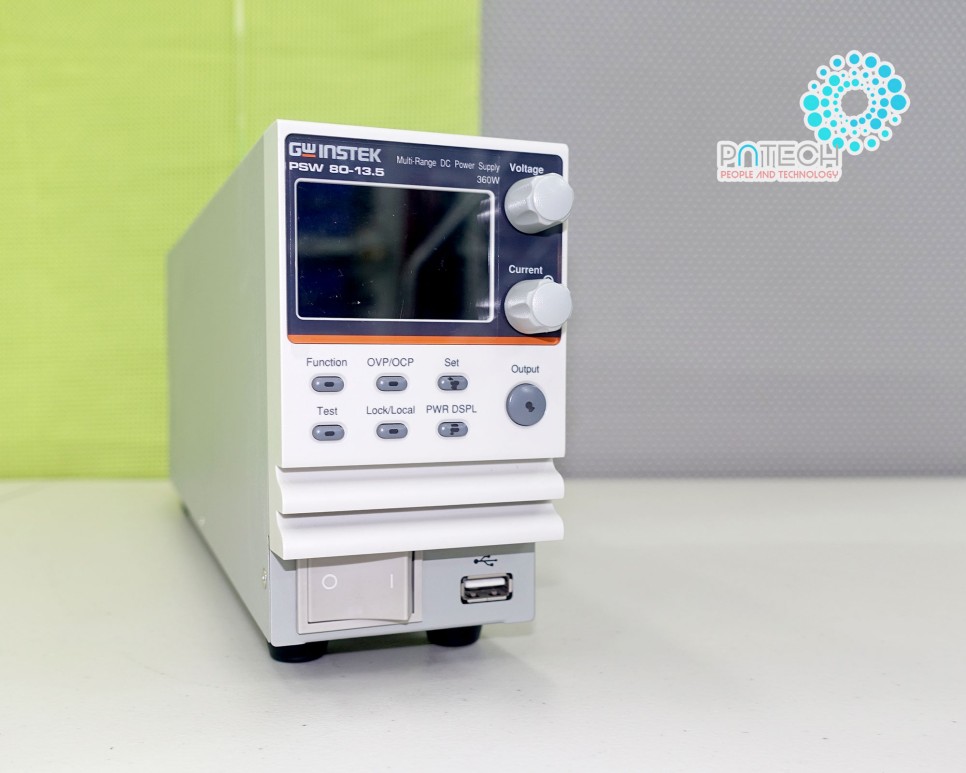

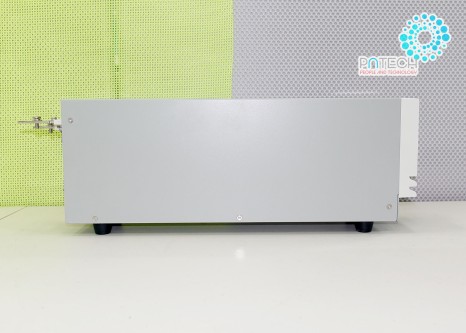

GWINSTEK PSW-80-13.5 MULTI RANGE POWER SUPPLY 실사진
마무리
