오늘 소개해드릴 장비는 배터리테스터 히오키 HIOKI BT3554-01 Battery Tester With Bluetooth 입니다. 이장비 연구 또는 업무에 필요한 장비라면 언제든지 연락주세요... 친절하게 안내해드리겠습니다.
목차
1. KEY FEATURES:
2. SPECIFICATIONS:
3. 실사진
4. 마무리
BATTERY TESTER BT3554 (Built-in Bluetooth® wireless technology)
KEY FEATURES
batteries critical to the life support of all businesses. The BT3544 battery internal resistance testers sets the standard for assesing the deterioration and remaining life of UPS and other lead-acid batteries by giving a complete diagnosis via battery resistane testing. The specially designed L2020 Pin Type Lead further improves testing efficiency with an L-shaped tip that lets you reach deep into the battery racks to completely probe the terminals. The BT3554-01 & BT3554-11 are built with Bluetooth wireless technology for easily transferring data on mobile.
KEY FEATURES
- Measures and save data in as fast as 2 seconds, a 60% improvement from the legacy 3554
- Analyze battery health in real time using Bluetoothwireles technology
- Instataneously diagnose battery degradation (PASS, WARNING, FAIL) by measuring internal resistance and voltage
- Analyzer battery health in real time using Bluetooth wireless technology
- New protector delivers better ergonomic hold and durability in the field.
- Noise reduction technology improves noise resistance
SPECIFICATIONS
SPECIFICATIONS:
RESISTANCE MEASUREMENT RANGE
|
3 mΩ (max display 3.100 mΩ, resolution 1μΩ) to 3 Ω
|
VOLTAGE MEASUREMENT RANGE
|
± 6 V (max. display ±6.000 v, resoltion: 1 mV) to ± 60V
|
ABSOLUTE MAX INPUT VOLTAGE
|
60 V DC max. (No AC input)
|
DISPLAY UPDATE RATE
|
Approx. 3 times/s
|
COMPARATOR FUNCTIONS
|
Resistance Warning limit / failure limit, voltage
|
OTHER FUNCTIONS
|
Temperature Measurement (-10.00 to 60.00˚ C), zero-adjustment, Hold, Auto-hold, Auto-memory, Auto-power-save, Clock
|
Dimensions / MAss
|
199mm * 132mm * 60.6 mm; 947 g.
|

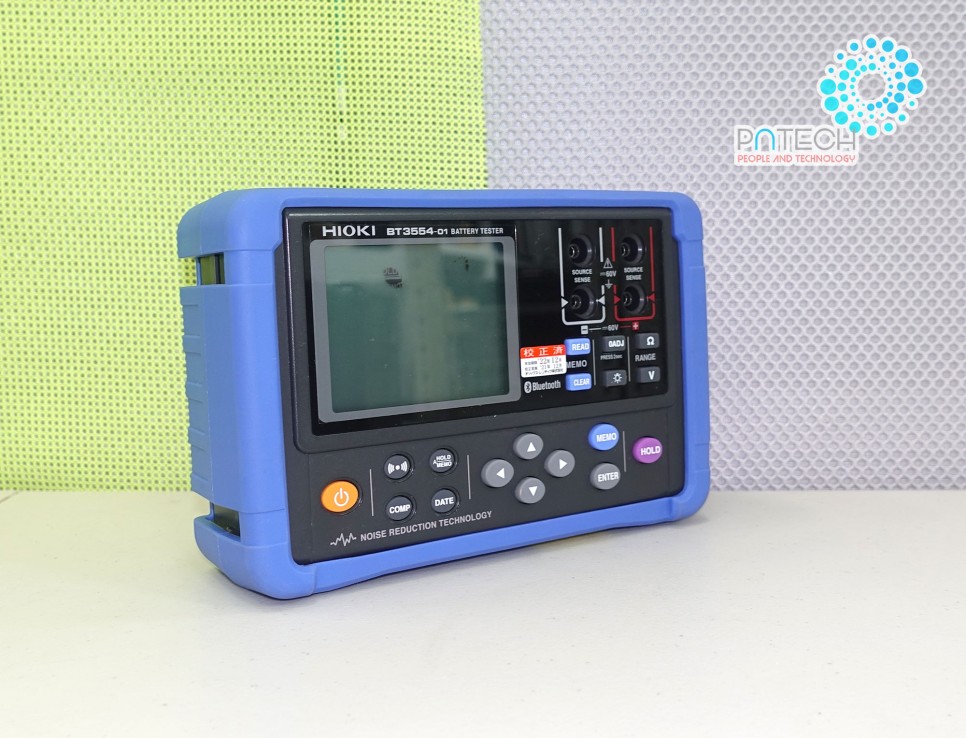

실사진
마무리
이외에도 저희 피엔텍에서는 다양한 사양의 계측장비를 보유하고있습니다.
제품구매 / 렌탈 / 대여 / 수리 등 기타 궁금한점이나 문의사항 있으시면 언제든지 연락주세요. 계측기 전문 상담사가 친절하게 안내해드리겠습니다.
문의 : 010-2331-0295 / ☎ 02-407-5295
