요코가와 핸디 캘리브레이터 CA150 입고되어 소개해드리려고 합니다. Yokogawa Calibrator 다기능 핸드 헬드 교정기 (신호발생기) 입니다. 작동 및 상태 최상입니다. 자세히 소개해 드리도록 하겠습니다. 이제품 문의 있으시면 언제든지 연락주시면 친절하게 안내해드리겠습니다.
목차
1. Specifications - Model CA150
2. Product Overview CA150 Calibrator 중고계측기
3. 요코꼬가와 Yokogawa 핸디 캘리브레이터 CA150 실사진
4. 마무리
Yokogawa 핸디 캘리브레이터 CA150 Calibrator
The CA150 Handy Calibrator is a portable, multi-function calibration device that can handle wide variety of tasks ranging from verifying multimeters, temeprature controllers, and frequency meters. It is able to precisely source & measure voltage, current, resistance, pulse and thermoelectromotive force signals, as well as generate specialized outputs such as signal stepping and ramping. The unit can be battery powered for treu portability, or connected to ans AC outlet.
Specifications - Model CA150
| Standard Accessories | None |
| Power Supply |
6 AA size alkaline batteries AC adapter (sold separately) AC adapter specification: 100 to 240 VAC, 50/60 Hz, 1.4 A Dedicated NiMH battery (sold separately) OUTPUT: 12 VDC, 3 A |
| Auto power-off | Approx. 10 minutes; it can be canceled by setting. |
| Operating Temperature/Humidity Range | 0 to 40°C, 20 to 80 % RH (no condensation) |
| Storage Temperature Range | -20 to 60°C 90%RH or less (no condensation) |

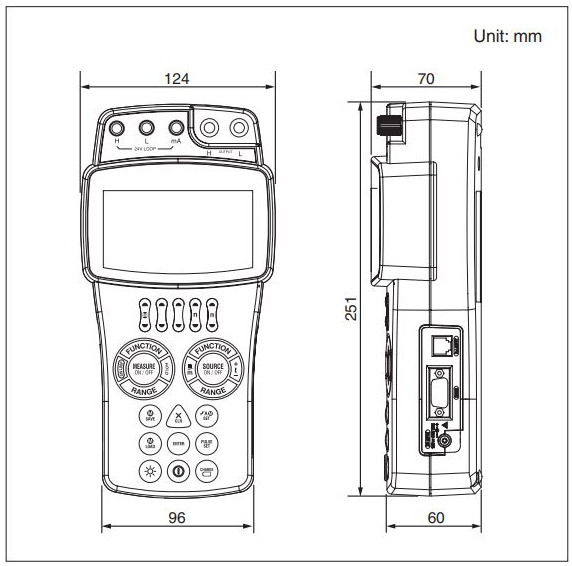

| External Dimensions |
251 x 124 x 70 mm |
| Weight |
Approx. 1000 g |
| Conforming Standards Safety |
Safety EN61010-1 EMC EN 61326 Class B;EN 55011 Class B Group1 EN 61000-3-2; EN 61000-3-3, EN61326 |
Product Overview CA150 Calibrator 중고계측기
|
Vertical Hand-Held Calibrator
|
Easy-to-hold vertical body is designed to make it intuitively easy to operate, as individual functions are accessed directly by pressing assigned keys.
Using the main body case (model No. 93027) (sold separately), you can hang CA150 to your body or a handrail to keep it handy.
|
|
Simultaneous Source and Measurement for Process Devices
|
In conventional calibration applications, multiple devices such as a standard generator, dial resistor and multi-meter were required. Now with a single CA150 unit, it is possible to perform operation check at regular inspection and maintenance of thermocouples, RTDs and instruments, as well as maintenance and equipment diagnosis of process devices such as transmitters, thermostats and signal converters.
|
|
Loop Power Supply Function
|
It is possible to measure generated current signals while supplying loop power 24 VDC from a two-wire type transmitter (up to 22 mADC).
|
|
Highly Accurate and Multi-Functional Source and Measurement
|
High accuracy: 0.02% for the source unit and 0.02% for the measurement unit
Source and Measurement functions: DCV voltage, DC mA, ohm, frequency and temperature (thermocouple, RTD) and 24 VDC power supply function for transmitters
|
|
Output Functions
|
Automatic Output Functions
Step sweep function
This function changes the output in a staircase (step) pattern at fixed intervals.
Linear sweep function
This function increases (or decreases) the output linearly with respect to the generated value.
Program sweep function
This function outputs source setting values stored by the data memory function sequentially in the order they are stored in the memory.
|
|
Communication Functions
|
Serial interface RS232 D-Sub 9-pin connector
|
|
Memory Function
|
Data can be stored and loaded in setting memory (setting data) and data memory (source/measurement).
Setting memory
This function saves/loads setting conditions.
Up to 21 data items can be stored. Settings for (source/measurement) functions, ranges, generated values/measured values as well as setting mode conditions can be stored.
Data memory
This function saves source and measure values displayed.
Up to 100 data items can be stored. Storage date/time, (source/measurement) functions, ranges and generated values/measured values can be stored. Stored data can be checked on the display of the main unit as well as via communication.
|
Field instruments are seen across all industrial and process control sectors. They ensur eplant operation integrity through converting environmental phenomena such as pressure, sound, temperature, humidity, and flow into measurable quantities such as resistance, voltage, and current. These quantities enable large distributed control systems to efficienly monitor these operations. To maintain the reliability of these field instruments, calibration devices are employed. These devices must be portable, accurate, and multi-purposeto handle any situation in harsh field environments.
Yokogawa's CA150 achieves this by its:
Accuracy
- Featuring superior source and mesurement accuracy, the unit is ideally suited for veryfying and calibrating field instruments
Varied Functionality - Combined the capabilities of several instruments into one, compact unit
- Simultaneously source and measure voltage, current, resistance, RTD and thermocouples, and pulse signals
- Generate test conditions such as output stepping, ramping, and custom test patterns
Ease of Use - Intuitive controls and a clear display allow your personnel to quickly and efficiently perform their maintenance duties
- Portable, ligh-weight, and battery powered. Take it anywhere in the field
요코꼬가와 Yokogawa 핸디 캘리브레이터 CA150 실사진
마무리
