중고계측기수리 판매 대여 장비 입고 소식~Yokogawa/요꼬가와 WT1600 Digital Power Meter/디지털 파워미터 -
안녕하세요~
주말 잘 보내셨나요?
요즘 너무 더워가지고 바다 놀러 가고 싶네요~

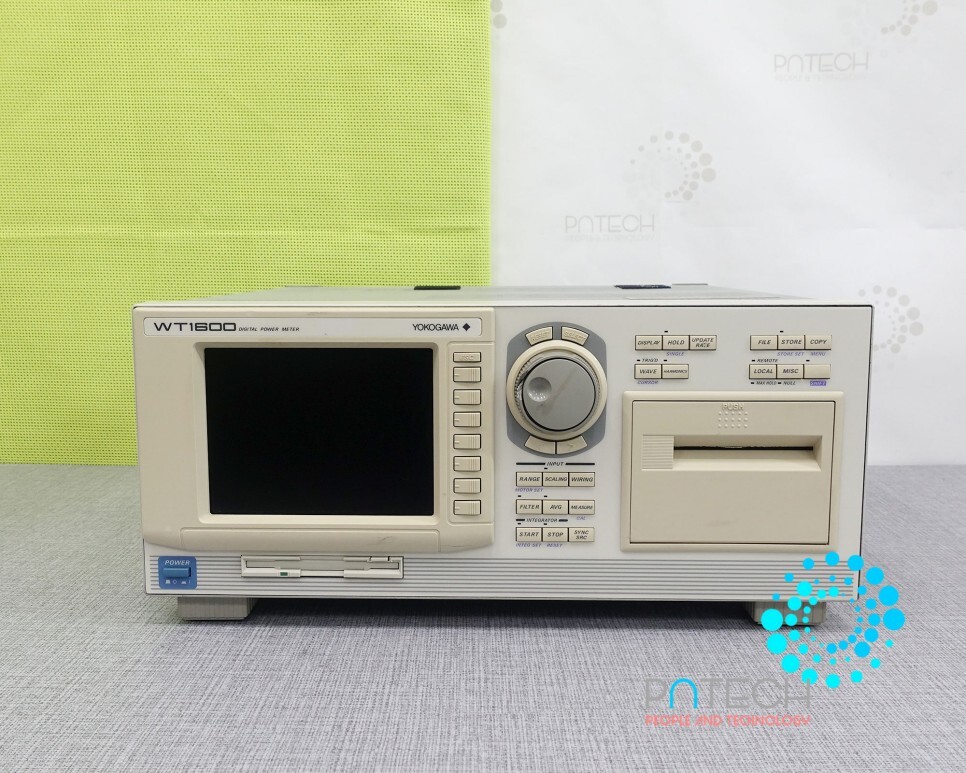

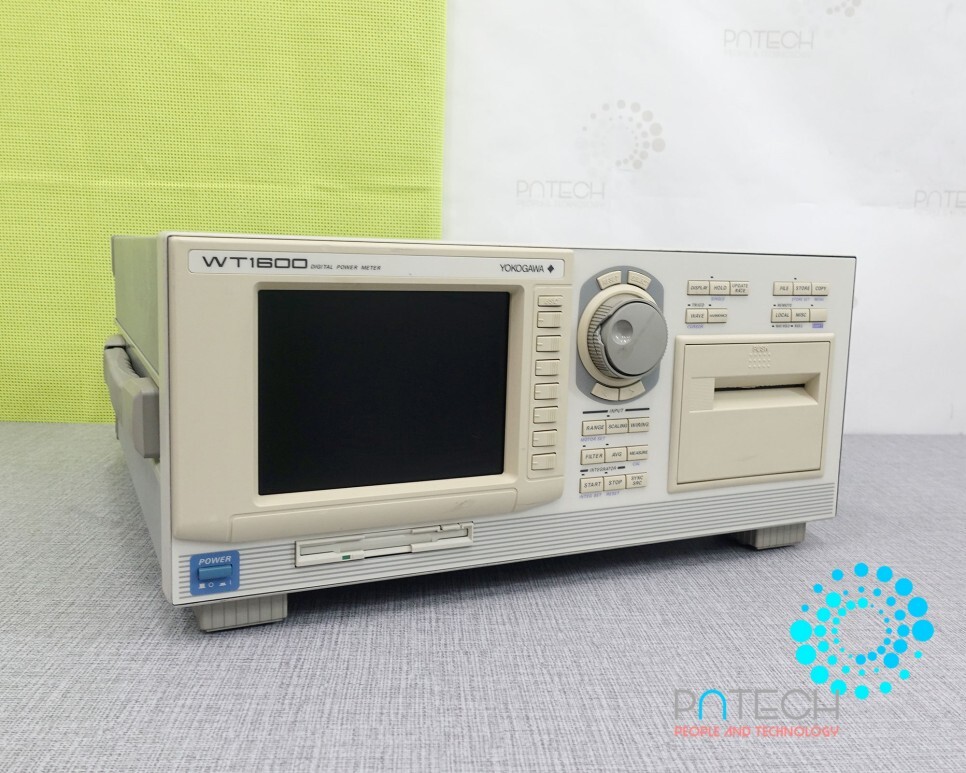

오늘은 중고 계측기 요꼬가와 Yokogawa WT1600 Digital Power Meter / 디지털 파워미터 입고되었네요~
Up to Six-Phase Input in One Unit. Synchronized Measurement between two units simplifies our processes.
A single WT1600 unit can make up to six different power measurements (six input each for voltage and current). With the measure start-stop function (synchronized measurement), two WT1600 units (12 inputs) can be synchronized.
- Up to 6-phase input on One unit.
- Wide Current Input Ranges
- Data Storing as Fast as 50 ms (20 times per Second)
- High Precision and Wide Bandwidth
- Increased Assured-Accuracy Range for High-Precision Measurements
- A variety of Display Formats
- Display Harmonic Data as Bar Graphs, Vectors and Lists
- Built-in Printer
- Integration Function Capable of Handling Rapid Changes in Input Signal
중고 계측기 대여 렌탈 판매 요꼬가와 / Yokogawa 요꼬가와 WT1600 디지털 파워미터 / Digital Power Meter
Wide Current Input Ranges
The WT1600 has two different elements. A 5A input element is provided for measuring extremely small currents, while a 50 A input element serves to measure large currents
Both of the elements can be installed together in the WT1600. The current for the 5 A input element can be set as low as 10 mA for measuring extremely small currents in the energy-saviing equipment.
- Two input elements
- 5 A input element
- 10/20/50/100/200/500 mA, 1/2/5 (DC, 0.5 Hz to 1 MHz)
- 50 A input element
- 1/2/5/10/20/50 A (DC, 0.5 Hz to 100 kHz)
중고계측기 수리 대여 판매 요꼬가와 / Yokogawa WT1600 Digital Power Meter / 디지털 파워 미터
Data Storing as Fast as 50 ms (20 Times per Second)
The data can be stored at intervals as short as 50 ms. The WT1600 rapidly calculates input parameters suchs as rms voltage, rms current, and power. MEasurements can be stored in a 11-MB internal memory, which is helpful for application such as:
Evaluation of characteristics at motor startup including torque and rpms (requires the optional motor evaluation function)
Measurement of rapidly fluctuating secondary voltage and lamp current when a light is turned on.
High Precision and Wide Bandwidth
Yokogawa 요꼬가와 WT1600 디지털 파워미터
The WT1600 has a higher measurement accuracy than any instrument in its class.
It also features a 1 MHz measurement bandwidth (voltage, current) effective for such things as the evaluation of high-frequency illumination devices using inverters.
A Variety of Display Formats
IN addition to numerical data, the WT1600 can display input signal waveforms. Eleven differet display formats can be selected on a single WT1600 unit, so it is not necessary to connect an external waveform viewer to check waveforms.
The WT1600 display measurement for each display updating Increased Assured-Accuracy Range
중고계측기 수리 대여 렌탈 요꼬가와 Yokogawa WT1600 디지털 파워미터/Digital Power Meter
For High-Precision Measurements
Accuracy is assured at input ranges of 1% to 110% for AC, and 0% to 110% for DC. However in the case of AC, it is necessary to input either a voltage or current that exceeds 10% relative to the range in order to have the voltage and current rms values calculated precisely.)
다양한 중고계측기 대여 렌탈 판매 수리 합니다. 요꼬가와/Yokogawa WT1600 Digital Power Meter/파워미터 에 대해
