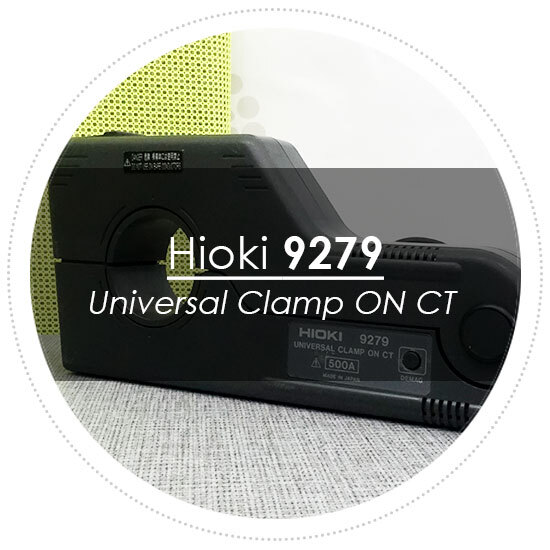

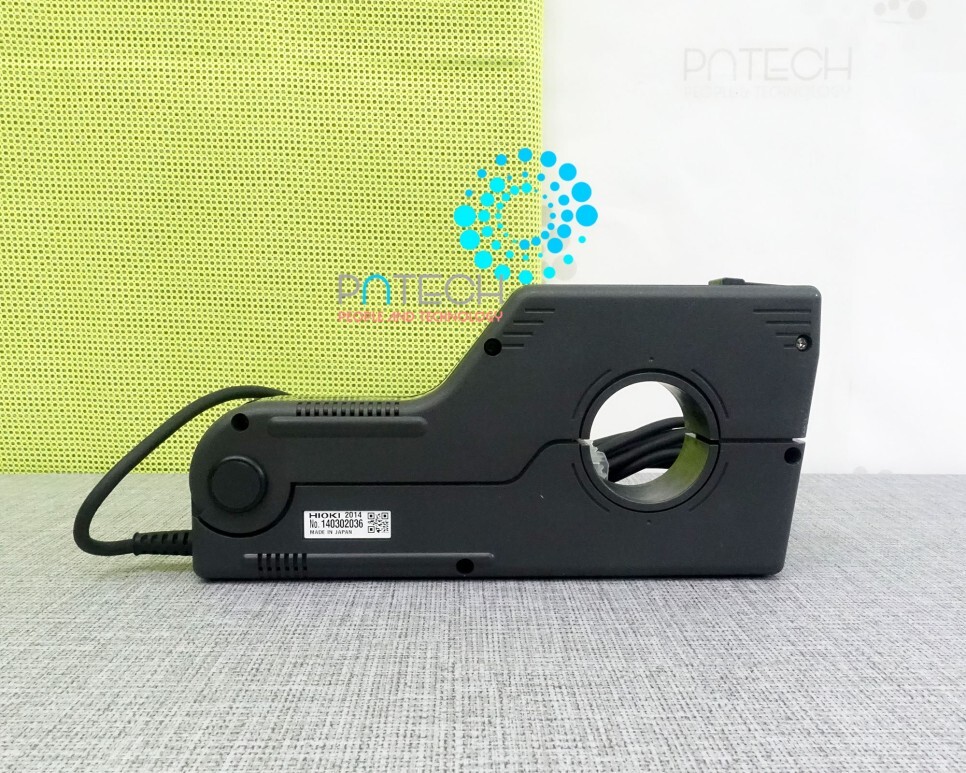

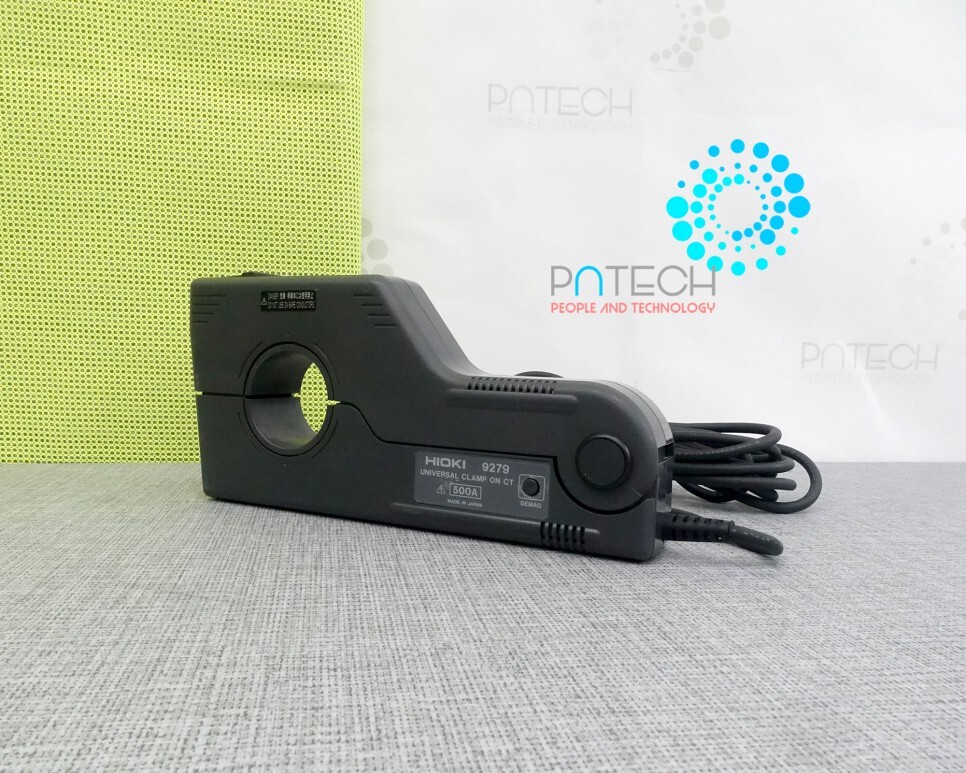

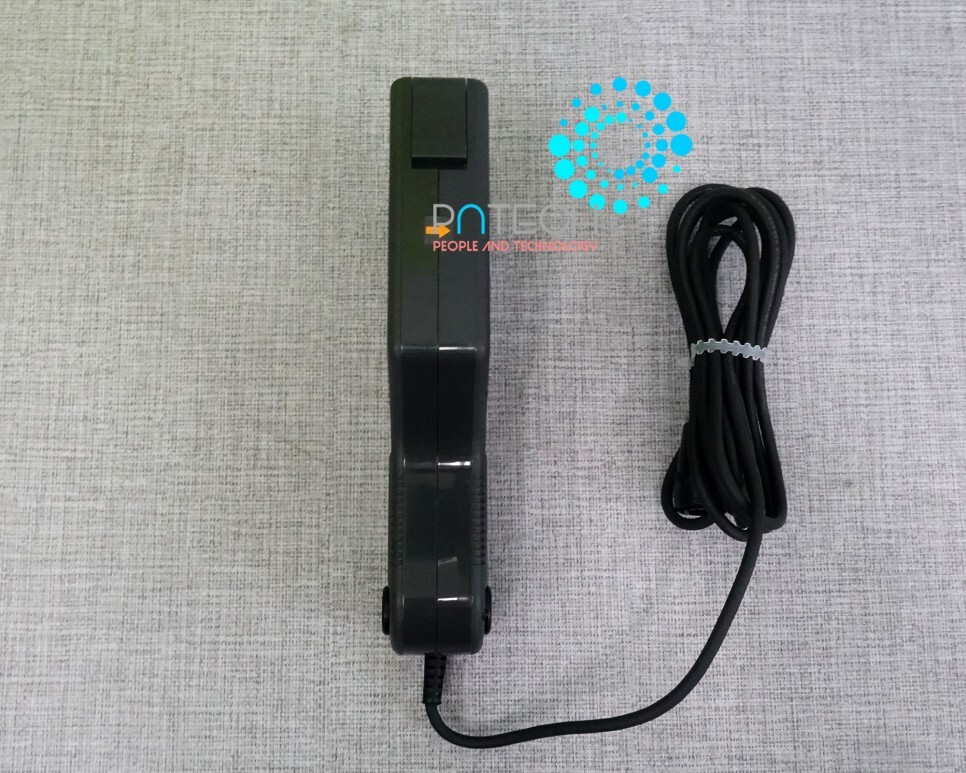

Hioki 9279 Universal Clamp-on Probe (AC/DC 500A)
- Freq. Band: DC tro 20 kHz
- Current: 500 A
- Jar Size: Ø40mm (1.57)
- High-precision sensoirs to view waveforms or to use with power meter (for AC/DC)
- Use with the 3193 Power Hitester or similar instrument, for power measurement
Description:
Universal Clamp On Probe (AC/DC 500A)
The 9277, 9278, 9279 provide wide frequency ranges, including of DC components, and clam-on sensors. Used together with the 9555 Sensor Unit, these allow current waveform monitoring, connection to a waveform recorder or oscillograph. Use with the 3193 POWER HiTester or similar instrument, for power measurement.
Manufacturer Specs
- Rated Current : 500A AC/DC (Continuous 650A)
- Frequency Bandwidth : DC to 20 kHz (±5% f.s.)
- Accuracy (at 45 to 66 Hz) : ±0.5% rdg ±0.05% f.s. phase ±0.2˚
- Max Circuit Voltage : 600 V peak (insulated wire) Note: The corem shield case, and electrical circuits are not insulated

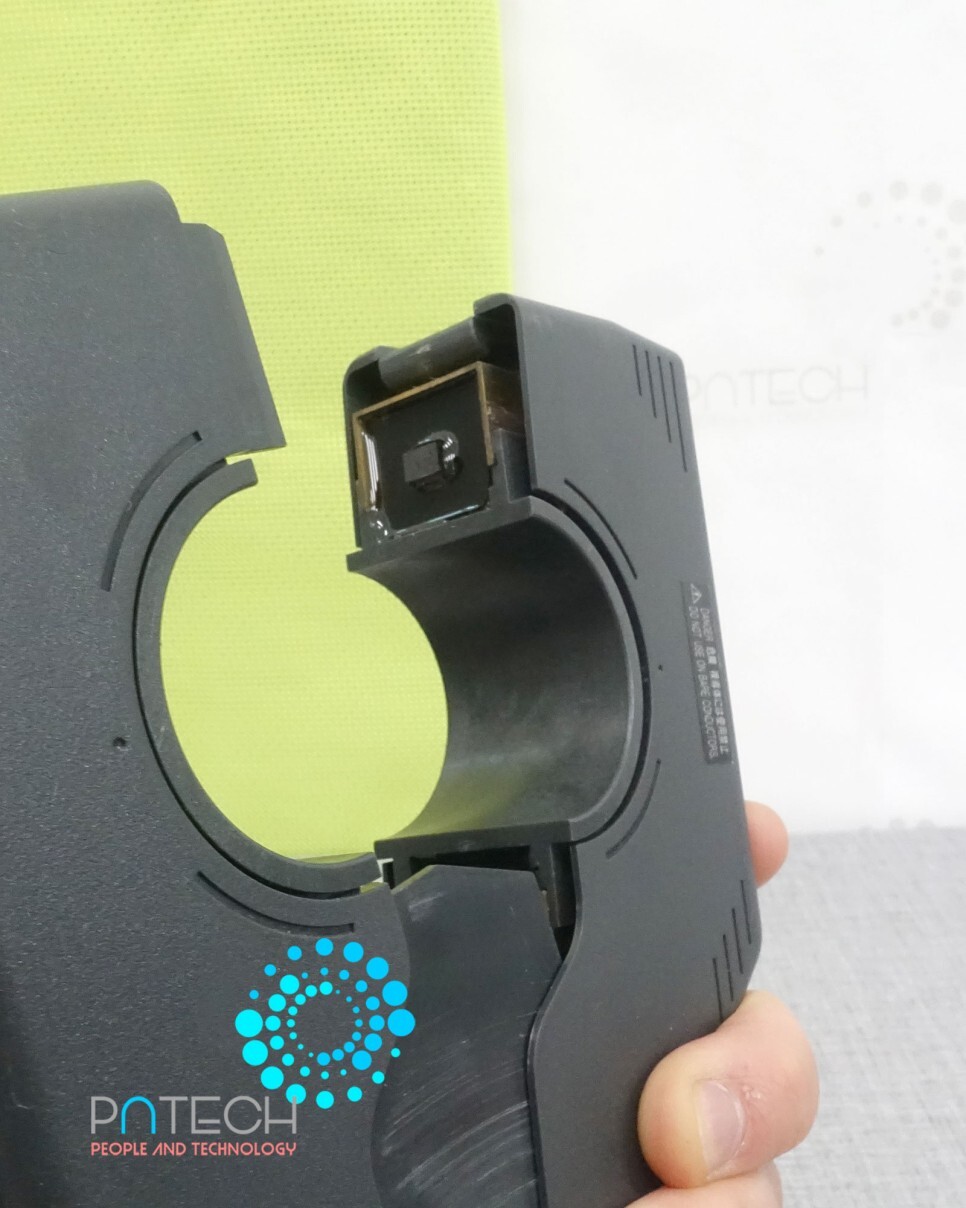

- Core Jaw Diameter : Ø40mm (1.57in)
- Dimension : 200 m (W) x 103mm (H) X 43.5mm (D)
- Accesories : 9375 Carrying Case
중고 계측기 렌탈 판매 히오키 Hioki 9279 클램프 온 프로브/전류 프로브 Universal Clamp-on Probe 더 자세한 내용 궁금하시다면 아래로 연락 부탁드립니다.
