Hioki 히오키 BT3563 배터리 하이 테스터 / 배터리 측정기 중고계측기 매각/매입 판매 렌탈 대여
안녕하세요! 중고계측기 렌탈 판매 전문 업제 피엔텍입니다.

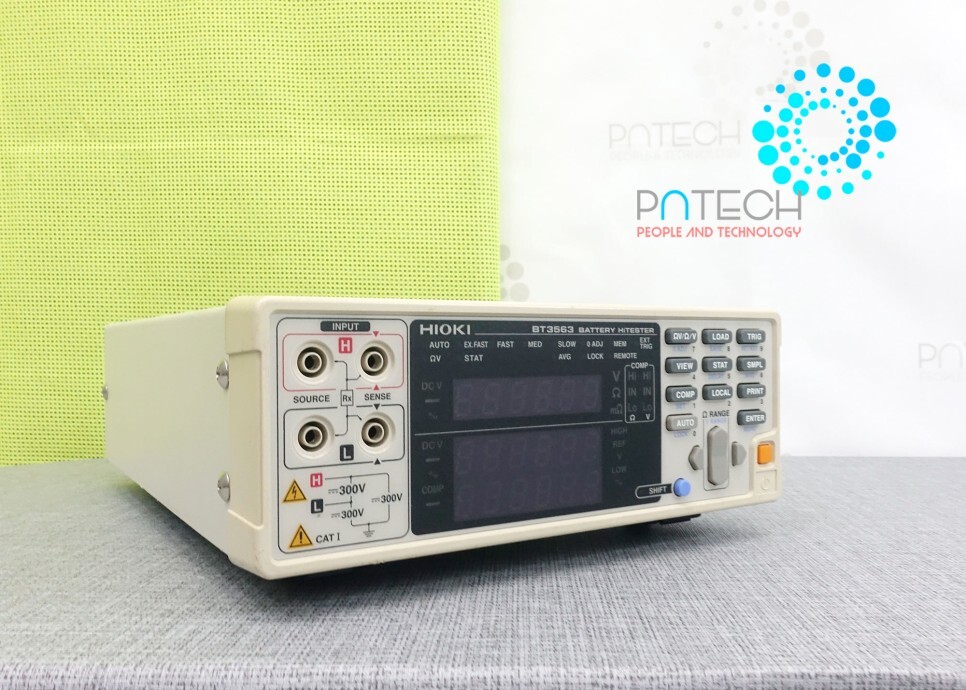

오늘의 계측기는 Hioki (히오키) BT3563/BT3563-A 배터리 테스터/측정기 받았습니다~
미리 보기 보시려면, 아래로 플레이 보튼 ▶▶▶▶↓↓↓↓↓↓↓
중고계측기 매각/매입 판매 대여 렌탈 Hioki /히오키 BT3563 Battery HiTester / 배터리하이테스터
3 m to 3000/300V DC battery Testers for Production Line Testtinbg of High Voltage BAttery PAcks and Modules. Battery HiTester (300V Max.)
중고계측기렌탈 판매 대여 Hioki BT3563
- Ideal for high-precision cell voltage measurements
- Ranges from 3 mO to 300 Ohm support coin-size to large-cell batteries
- Measurement cicuitry employs enhanced current regulation
- Battery module testing
- Fast 10ms response and 8 ms. sampling time for high-speed measurements
- High-speed mass production testing of coin batteries
- Fuel cell stack measurements
- Battery research and development measurement applications
- Choice of PC interfaces for full remote operation
중고계측기렌탈 대여 판매 Hioki BT3563 Battery HiTester 배터리 하이테스터 / 배터리 측정기 / 중고계측기매입 매각
Description:
Battery HiTester
The Hioki BT3562; 6V/60V, BT3563-A 6V/60V Battery HiTester support simultaneous high-speed measurement of internal resistance (IR) and batter voltage (OCV) for the ever-expanding production lines of increasingly larger lithium-ion low resistance batteries, and other battery packs for high voltage applications.
Hioki BT3563/BT3563-A Battery HiTester / 배터리하이테스터 / 배터리 측정기 / 계측기매각 매입
Advanced: 히오키 BT3563 (BT3563A) Battery HiTester / 배터리측정기/배터리 하이테스터
- Four-Terminal AC Method
- Measurement Error Detection
- Self-calibrating
- Averaging Function
Manufacturer Specs
|
Models
|
||
|
Max. applied measurement voltage
|
±300 V DC rated input voltage
±300 V DC maximum rated voltage above ground
|
±60 V DC rated input voltage
±70 V DC maximum rated voltage above ground
|
|
Resistance Measurement ranges
|
3 mO (Max. display 3.1000 mO, resolution 0.1 µO) to 3000 O (Max. display 3100.0 O, resolution 100 mO), 7 ranges
Accuracy: 30 mO to 3000O ranges, ±0.5 % rdg. ±5 dgt. (Add ±3 dgt. for EX.FAST, or ±2 dgt. for FAST and MEDIUM)
3 mO range, ±0.5 % rdg. ±10 dgt. (Add ±30 dgt. for EX.FAST, or ±10 dgt. for FAST, or ±5 dgt. for MEDIUM)
Testing source frequency: 1kHz ±0.2Hz, testing current: 100 mA (3 mO range) to 10 µA (3000O range)
Open-circut Voltage: 25 V peak (3/30 mO ranges), 7 V peak (300 mO range), 4 V peak (3O to 3000O ranges)
|
|
|
Voltage Measurement ranges
|
DC 6 V (resolution 10 µV) to DC 300 V (resolution 1 mV), 3 ranges
|
DC 6 V (resolution 10 µV) to DC 60 V (resolution 100 µV), 2 ranges
|
|
Voltage Measurement ranges
|
Accuracy: ±0.01 % rdg. ±3 dgt. (Add ±3 dgt. for EX.FAST, or ±2 dgt. for FAST and MEDIUM)
|
|
|
Display
|
31000 full digits (resistance), 600000 full digits (voltage), LED
|
|
|
Sampling rate
|
Four steps
4 ms(Extra-FAST), 12 ms(FAST), 35 ms(Medium), 150 ms(Slow)
(Typ., sampling time depends on supply frequency settings and function.)
|
|
|
Measurement time
|
Response time + sampling rate, approx. 10 ms for measurements
(Response time depends on reference values and the measurement object.)
|
|
|
Comparator functions
|
Setting: Upper and lower limit
Output: 3 levels (Hi, In, Lo) or (Pass, Fail), Open-collector(35V, DC50mA max), Display, Dual audible indicator
|
|
|
Analog Output
|
Mesured resistance (displayed value, from 0 to 3.1V DC, -01 suffix models only)
|
|
|
Interface
|
External I/O, RS-232C, Printer (RS-232C), GP-IB(-01 suffix models only)
|
|
|
Power supply
|
100 to 240 V AC, 50/60 Hz, 30 VA max.
|
|
|
Dimensions, mass
|
215 mm (8.46 in) W × 80 mm (3.15 in) H × 295 mm (11.61 in) D, 2.4 kg (84.7 oz)
|
|
|
Supplied accessories
|
Power cord × 1
|
|
|
Models
|
||
|
Max. applied measurement voltage
|
±300 V DC rated input voltage
±300 V DC maximum rated voltage above ground
|
±60 V DC rated input voltage
±70 V DC maximum rated voltage above ground
|
|
Resistance Measurement ranges
|
3 mO (Max. display 3.1000 mO, resolution 0.1 µO) to 3000 O (Max. display 3100.0 O, resolution 100 mO), 7 ranges
Accuracy: 30 mO to 3000O ranges, ±0.5 % rdg. ±5 dgt. (Add ±3 dgt. for EX.FAST, or ±2 dgt. for FAST and MEDIUM)
3 mO range, ±0.5 % rdg. ±10 dgt. (Add ±30 dgt. for EX.FAST, or ±10 dgt. for FAST, or ±5 dgt. for MEDIUM)
Testing source frequency: 1kHz ±0.2Hz, testing current: 100 mA (3 mO range) to 10 µA (3000O range)
Open-circut Voltage: 25 V peak (3/30 mO ranges), 7 V peak (300 mO range), 4 V peak (3O to 3000O ranges)
|
|
|
Voltage Measurement ranges
|
DC 6 V (resolution 10 µV) to DC 300 V (resolution 1 mV), 3 ranges
|
DC 6 V (resolution 10 µV) to DC 60 V (resolution 100 µV), 2 ranges
|
|
Voltage Measurement ranges
|
Accuracy: ±0.01 % rdg. ±3 dgt. (Add ±3 dgt. for EX.FAST, or ±2 dgt. for FAST and MEDIUM)
|
|
|
Display
|
31000 full digits (resistance), 600000 full digits (voltage), LED
|
|
|
Sampling rate
|
Four steps
4 ms(Extra-FAST), 12 ms(FAST), 35 ms(Medium), 150 ms(Slow)
(Typ., sampling time depends on supply frequency settings and function.)
|
|
|
Measurement time
|
Response time + sampling rate, approx. 10 ms for measurements
(Response time depends on reference values and the measurement object.)
|
|
|
Comparator functions
|
Setting: Upper and lower limit
Output: 3 levels (Hi, In, Lo) or (Pass, Fail), Open-collector(35V, DC50mA max), Display, Dual audible indicator
|
|
|
Analog Output
|
Mesured resistance (displayed value, from 0 to 3.1V DC, -01 suffix models only)
|
|
|
Interface
|
External I/O, RS-232C, Printer (RS-232C), GP-IB(-01 suffix models only)
|
|
|
Power supply
|
100 to 240 V AC, 50/60 Hz, 30 VA max.
|
|
|
Dimensions, mass
|
215 mm (8.46 in) W × 80 mm (3.15 in) H × 295 mm (11.61 in) D, 2.4 kg (84.7 oz)
|
|
|
Supplied accessories
|
Power cord × 1
|
|
히오키 배터리 하이테스터 BT3563/BT3563-A Battery HiTester/배터리 측정기 - 중고계측기 판매 /대여 /렌탈
이보다 더 많은 중고계측기를 공급합니다.
중고계측기 렌탈 판매 대여 수리 교정 전문 업체 피엔텍에서 다양한 계측기/측정 장비들 있습니다.
필요하시거나 자세한 사항 있으시면 아래로 연락 주시기 바랍니다.
